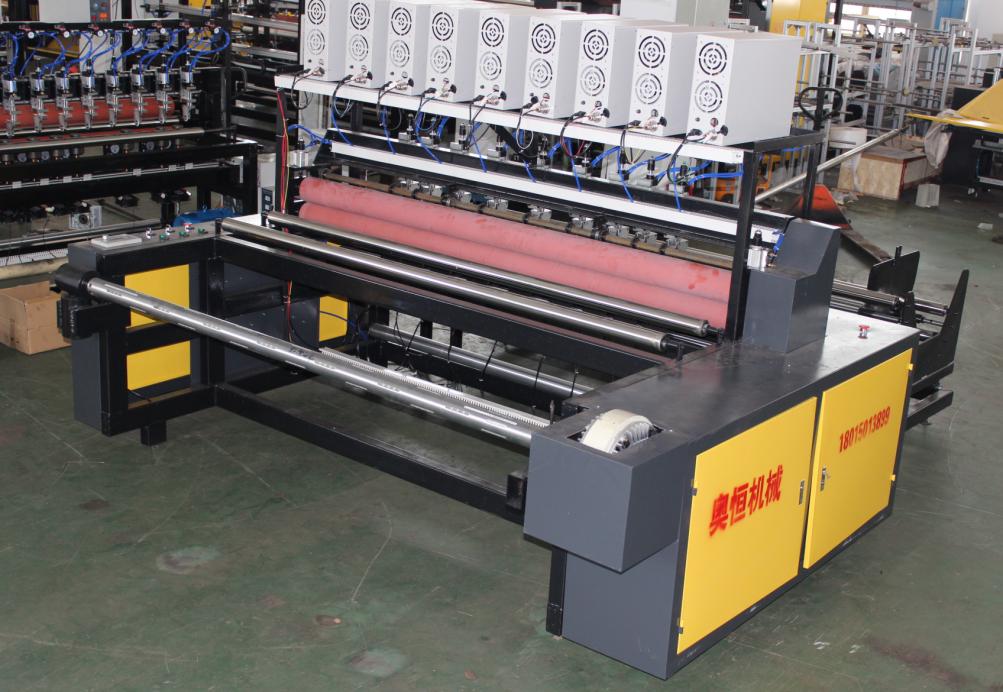

High-Precision Ultrasonic Slitting Machine - Model AH-1000-3200 for Superior Fabric Processing

Product Name: Ultrasonic Slitting Machine
Model: AH-1000-3200
Power Supply: 220V/380V
Generator Power: 800W * (Multiple sets with 70 welding heads)
Work Efficiency: 1-60m/min
Output Frequency: 20KHz
Slitting Width: Adjustable, minimum size 12CM
Max Rewind Diameter: 800mm
Motor Power: 2.2KW
Weight: 1800-2400KG
Magnetic Powder Motor: 20KG Tension-Free
Inflation Shaft: National Standard 74mm Diameter
Machine Configuration: Fabric feeding – Ultrasonic slitting – Rewinding

Technical Parameters
The price of the ultrasonic slitting machine is influenced by the customer’s specific requirements, such as the minimum cutting size, the number of ultrasonic sets needed, and the fabric width. The fabric feeding configuration is also a critical factor.

Product Features
Centralized Electric Control: The machine is equipped with a centralized electric control system, making operation simple, convenient, and aesthetically pleasing.

Variable Frequency Control System: The system uses a variable frequency control system to regulate the operating speed, ensuring stable and reliable performance.

Automatic Unwinding System: The machine features a 300 automatic brushless edge correction device that prevents fabric scratches, ensuring smooth and even feeding. The minimum slitting width can reach as small as 1 cm, enhancing slitting smoothness and cleanliness while improving energy efficiency.

Cradle Unwinding Frame: The cradle-style unwinding frame uses a dual-roller shunting system for fabric transport. The drive shaft supports the fabric, and the side plates can be easily adjusted based on fabric length.

Tension Control via Magnetic Powder Motor: The 20KG high-power magnetic powder motor controls the tension of the inflation shaft during rewinding (the tension can be automatically adjusted based on different materials).

Vertical Cutting with Guide Rail Slider: The slitting knives are designed for vertical cutting, making size adjustments easy and ensuring precise, stable dimensions. The ultrasonic slitting process produces fabric with no frayed edges, neat, and uniform slitting, with adjustable width. Multiple patterns (such as straight-edge and scalloped) are available, and the machine can be customized to meet customer requirements for different sizes and patterns.

Sturdy Mechanical Steel Structure: The machine’s robust steel construction ensures high stability during high-speed operations, enhancing durability and service life. This design also reduces labor costs and increases work efficiency.

The Ultrasonic Slitting Machine AH-1000-3200 is a highly efficient and versatile solution for fabric slitting with precise control over dimensions and slitting quality. Its flexible configuration and advanced features ensure smooth operation, minimal maintenance, and high output, making it ideal for a wide range of fabric processing applications.
