Optimizing Ultrasonic Welding: Key Tooling and Fixturing Solutions

Ultrasonic welding is a cutting-edge technique used across industries to join thermoplastics and microfiber fabrics through high-frequency vibrations, frictional heat, and pressure. While the technology itself offers incredible speed and efficiency, its success heavily depends on the tooling and fixturing involved in the process. Without precise alignment and uniform pressure application, even the most advanced welding systems can produce inconsistent or weak welds, leading to potential failures in critical applications such as automotive parts, electronics, or medical devices. Understanding what types of tooling and fixturing are necessary can make all the difference between a strong, reliable bond and a compromised one.

When discussing ultrasonic welding machines, tooling generally refers to two critical components: the horn (or sonotrode) and the anvil (or fixture). These components are responsible for transmitting the ultrasonic vibrations to the workpieces and ensuring that they are properly aligned and held under the correct pressure during the welding process. The design and precision of these tools are vital to the quality of the welds.

The horn is one of the most important elements in the ultrasonic welding process. It is custom-designed to match the shape and material of the workpiece being welded. Made from durable materials like titanium or aluminum, the horn transmits ultrasonic energy to the parts, causing localized heating at the interface where the weld occurs. However, the design of the horn must account for factors such as frequency, amplitude, and material rigidity. For instance, an improperly designed horn could result in uneven distribution of vibrations, leading to poor weld quality. In many cases, the shape of the horn must closely match the contour of the part being welded, ensuring even contact and efficient energy transfer. Horns that are too rigid or improperly tuned can even damage delicate parts by applying excessive force or vibrations in the wrong areas.

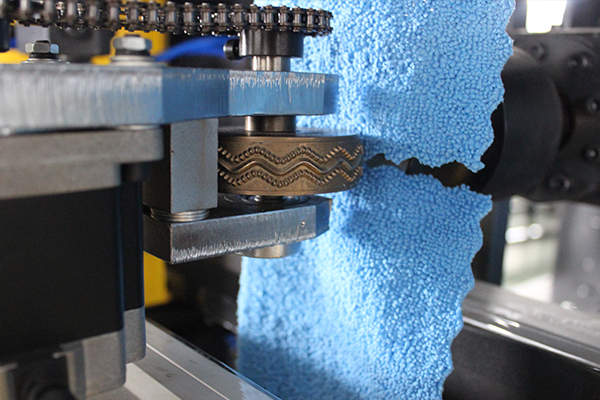

Equally crucial is the anvil or fixture, which holds the workpiece firmly in place during welding. Accurate fixturing is vital because any misalignment, movement, or improper pressure distribution during welding can lead to incomplete bonding or weak welds. A well-designed fixture provides support and ensures that the parts are perfectly aligned and stationary throughout the welding process. This is especially important for complex or multi-part assemblies where even a slight misalignment can result in functional failures. Fixtures are typically tailored to the geometry of the part and are designed to apply pressure uniformly across the joint area to create consistent welds.

One of the most critical factors in fixturing is pressure application. During ultrasonic welding, the materials being joined are subjected to pressure to ensure that the parts are in intimate contact throughout the process. The fixture must be robust enough to maintain even pressure without deforming the parts, especially if they are thin or delicate. If too much pressure is applied, it can lead to excessive material flow or even damage the parts. Conversely, too little pressure can result in weak or incomplete welds. Precision fixturing helps avoid these issues by applying consistent force across the workpiece surface and ensuring that the energy generated by the ultrasonic vibrations is concentrated at the weld joint.

Another important consideration for ultrasonic welding fixtures is material compatibility. The materials used in the fixture must be chosen carefully to avoid interference with the ultrasonic energy. Some materials, like certain metals, can absorb or reflect ultrasonic waves, reducing the effectiveness of the welding process. For this reason, fixtures are often made from non-reactive materials like hardened steel or specific polymers that can withstand the stress of the process without affecting the ultrasonic energy transmission. In some cases, the fixture design may also include features like cooling channels or heat sinks to manage the heat generated during the welding process and prevent overheating or distortion of the parts being welded.

In addition to accurate fixturing, tooling alignment plays a major role in achieving successful welds. The horn must be aligned with the fixture to ensure that the ultrasonic energy is applied precisely where it is needed. Misalignment can cause uneven distribution of energy, leading to weak welds or damage to the parts. Many ultrasonic welding machines are equipped with precise alignment systems and sensors to ensure that the horn and fixture are perfectly aligned before welding begins. However, this requires careful calibration and maintenance of the tooling to avoid any misalignment during production runs.

In more advanced applications, automated tooling and fixturing systems are used to improve the speed and accuracy of the ultrasonic welding process. These systems are designed to handle complex part geometries and can automatically adjust the tooling to accommodate different sizes or shapes of workpieces. Automated systems also help reduce human error in positioning and pressure application, resulting in more consistent and reliable welds. For high-volume production environments, automated fixturing systems offer significant advantages in terms of speed, repeatability, and overall production efficiency.
